Quick Setup Guide for Lightspeed Revive.
Quick Start Guide.
Welcome
Thank you for purchasing our Lightspeed Revive. This guide provides basic step-by-step instructions for setting it
up, but if you need additional help, our Customer Happiness team is at
your disposal by opening a ticket with us.
Package Contents
- Lightspeed Revive USB re-generator
- Micro USB-B to USB A adapter for charging*
- Lightspeed Warranty Statement card
- Lightspeed USB 3.0 C cable
*charging cable may not apply to campaign contributors.
Setup
To get you started using your Lightspeed Revive USB RE-generator, There are two steps involved.
- Installing the Hardware from your Mac or PC.
- Connecting your Lightspeed USB cable to your DAC
Step 1
Connecting your Revive from your PC or Mac.

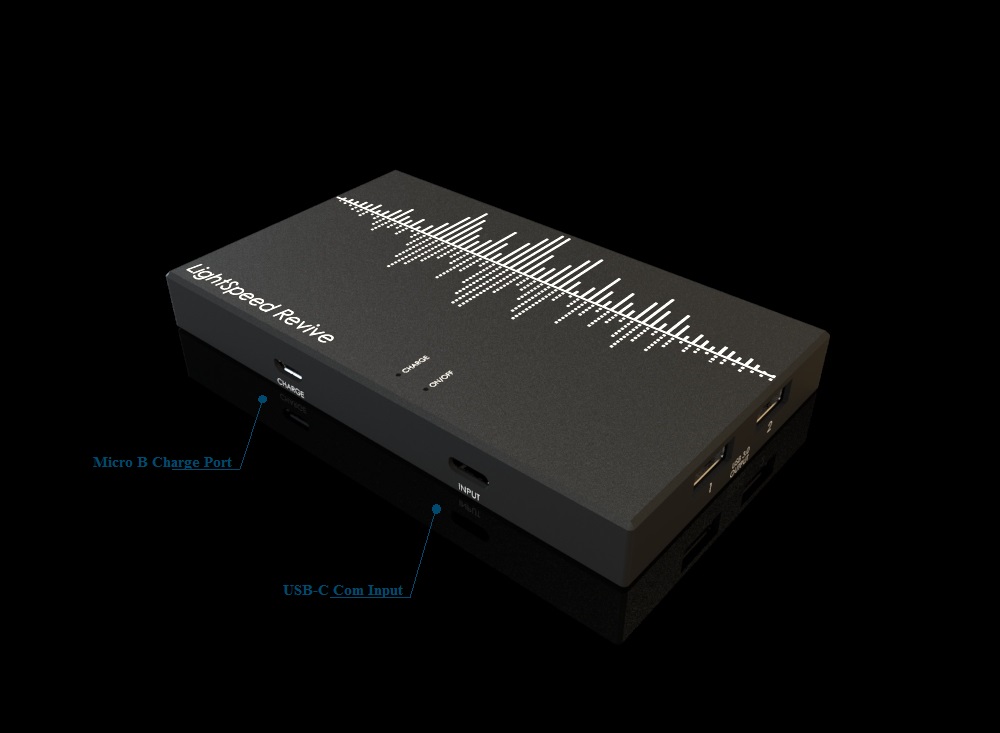

When connecting your Revive, connect the USB-C cable provided to the "USB-C Com Input" port found on the lower left side corner of your Lightspeed revive. (image found above). The USB-C is backwards compatible and will work for USB 2.0 and USB 3.0.
The On/Off LED will light to show the device has been enabled.
Connecting your Lightspeed Revive to your DAC.
To connect your DAC to your Lightspeed Revive, connect a USB cable to a " USB-A 3.0 Output" port found on the bottom of the Revive. (image found below)
Full Owner's Manual
For complete instructions about your device, please reference the full Owner’s Manual for details and discussions about the operation, features, and configurations.
